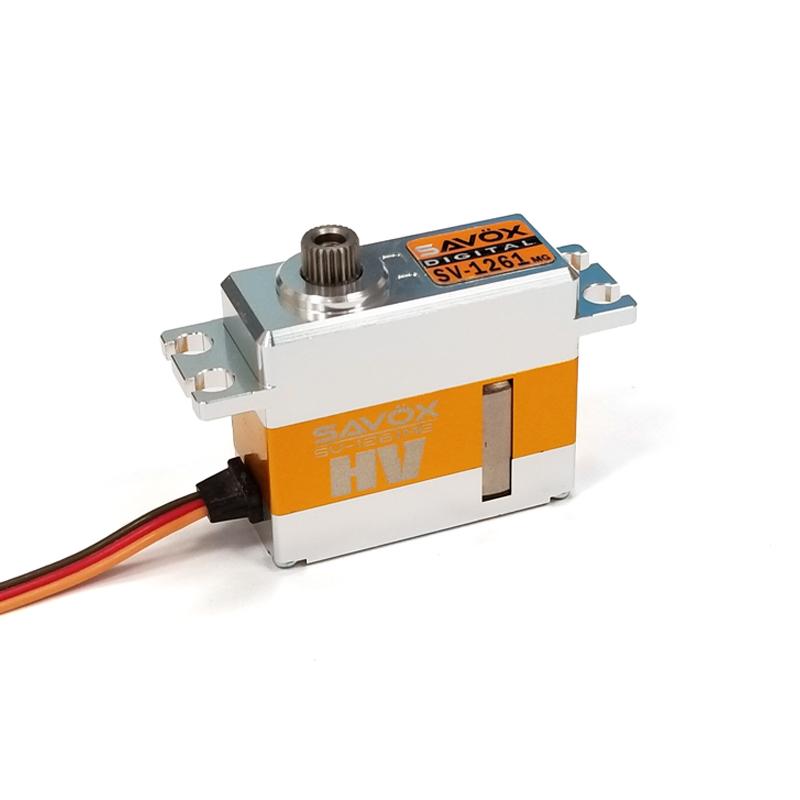

<p>The SV1261MG takes the performance of the SV1260MG and utilizing the same size case, increased the torque to a whopping 277oz/in while maintaining an impressive 0.095 second transit time. Primarily intended for air applications, this powerhouse can also be used in specialty cars, trucks, and boats and is intended to be used on direct 7.4V LiPo current.</p> <h3>Features</h3> <ul> <li>Metal gear train provide durability against heavy use</li> <li>Capable of HV operation</li> <li>All aluminum case provides strength and cooler operating temperatures</li> </ul>

<p>New from HPI is the high performance SFL-30MG Digital Servo that is perfect for use on the steering of HPI Baja trucks and buggies. The SFL-30MG digital servo offers precision steering movements, and is compatible with all radio systems on the market today, including high-speed systems.</p> <p>This servo has a high-output heavy duty motor which offers a continuous 18kg-cm [249.96oz-in] of torque through the entire servo sweep, a heat sink case to keep temps down, a machined metal gear train, including a new hybrid metal/plastic 1st gear, compared to the normal all-plastic 1st gears. Also included is an aluminum servo horn for maximum strength and durability. While the numbers are smaller [18kg-cm vs. 24kg-cm of torque], the SFL-30MG is an "over-all" much stronger servo. The SFL-30MG offers consistent "full-strength" torque across the entire servo-stroke, whereas the SFL-10MG2 [24kg-cm] servo only has a peak-strength at only one point across the servo stroke, thus an overall average rating below the SFL-30MG.</p> <h3>Features</h3> <ul> <li>Feel: The SFL-30MG will result in an overall stronger feel &amp; feedback to the driver.</li> <li>Compatibility: Digital servo is compatible with both High-Speed &amp; standard 2.4ghz / AM / FM Systems</li> <li>Durability: Provided by a much stronger Hybrid [metal/plastic] 1st gear compared to an all-plastic 1st gear provided in stock servo<br>Machined Metal Gear Train: for the ultimate in strength and performance</li> <li>Stronger Sweep: Strength over entire movement span of the servo</li> <li>Heavy Duty Motor: More strength providing more power for racing-endurance.</li> <li>High Output Endurance: After 20-30 minutes of run time, maintains holding power.</li> <li>Heat-Sink Case: Keeps servo temps low, and performance high</li> <li>Aluminum Servo Horn: Provides more strength / durability</li> </ul> <p><em>NOTE: NOT WATERPROOF! Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.</em></p>

<p>Servo Gear Set(KS302 DS) 82234-01</p>

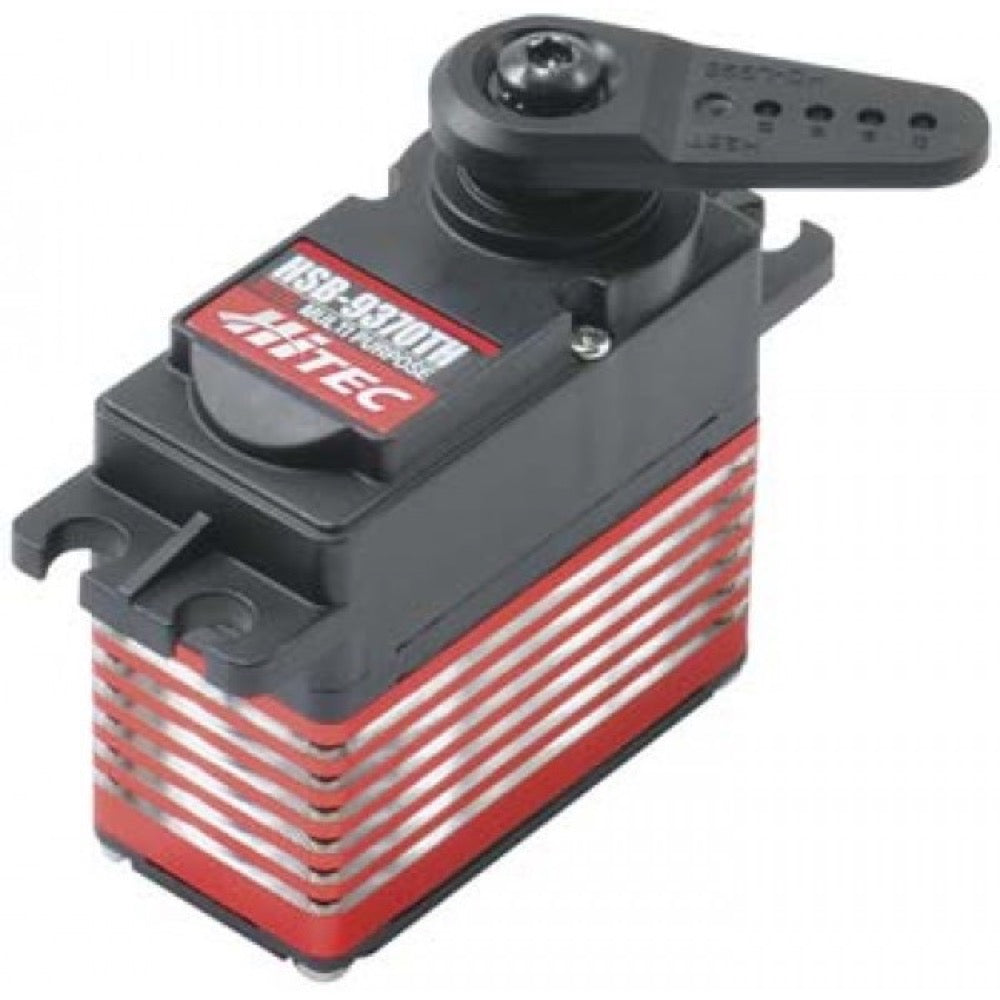

<p>With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.</p> <h3>Programmable Functions</h3> <ul> <li>End Point Adjustments</li> <li>Direction</li> <li>Fail Safe</li> <li>Dead Band</li> <li>Speed (Slower)</li> <li>Soft Start Rate</li> <li>Data Save / Load</li> <li>Program Reset (From File)</li> </ul> <h3>Features</h3> <ul> <li>Programmable 12Bit PWM Digital Amplifier</li> <li>Custom Long Life Brushless Motor</li> <li>1M Cycle Long Life Potentiometer</li> <li>Constant Output Torque</li> <li>Wide Operating Voltage (5 ~ 9 Volts DC)</li> <li>Dual Ball Bearing Supported Output Shaft</li> <li>Dust Resistant and Splash Proof Case</li> <li>25Tooth Output Spline</li> <li>Hybrid Nylon Reinforced Plastic and Aluminum Case</li> <li>Low Power Consumption</li> </ul> <h3>Specs</h3> <ul> <li>Operating Voltage Range (Volts DC): 6.0V ~ 7.4V</li> <li>Speed (Second @ 60°): 0.12 ~ 0.10</li> <li>Maximum Torque Range oz. / in.: 347</li> <li>Maximum Torque Range kg. / cm.: 25</li> <li>Current Draw at Idle: 27 mA</li> <li>No Load Operating Current Draw: 250 mA</li> <li>Stall Current Draw: 2,100 mA</li> <li>Dead Band Width: 1 µs</li> <li>Dimensions (Metric): 40.0 x 20.0 x 38.0</li> <li>Weight (Gram): 68</li> <li>Circuit Type: EBL Digital</li> <li>Motor Type: NeuCastle Brushless</li> <li>Gear Material: Titanium</li> <li>Bearing Type: Dual Ball Bearing</li> <li>Output Shaft (type / Ømm): H25T</li> <li>Case Material: Plastic / Aluminum</li> <li>Dust / Water Resistance: Splash Proof</li> <li>Connector Gauge (AWG) / Strand Count: 20 / 80</li> </ul>

<p>Spline Count 21 Tooth</p>

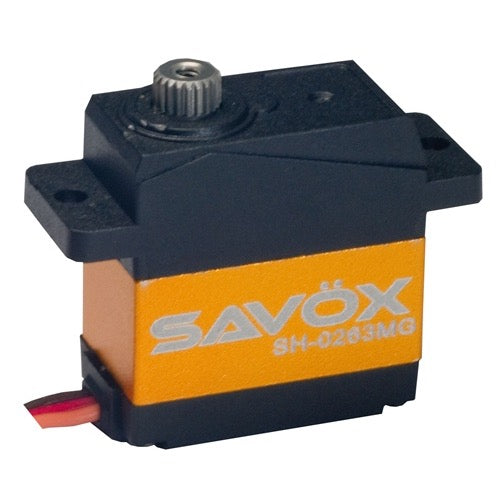

<p>This is the Savox SH-0263MG Super Torque Metal Gear Micro Digital Servo. </p> <h3>Features </h3> <ui> <li>Dual ball bearings in a micro servo? Yes, that is correct 2BB in a micro!!!</li> <li>Over-spec refined design out performs ordinary micro size servo.</li> <li>The metal case design looks awesome and allows for cooler and smoother operating temps.</li> <li>Metal gears form a solid framework for precise control and operation.</li> <li>Strict production and quality control of plastic components.</li> <li>Our servos are totally green – from materials to production, these servos are environmentally friendly.</li> <li>Ideal for cyclic servos for 250/450 class heli's, 1/16 scale surface vehicles, 3D aircraft, and park flyer airplanes.</li> </ui>

<h3>Features </h3><ui> <li> The coreless motor and light weight design provides smoother, faster, and more efficient operation. </li> <li> Case allows for cooler and smoother operating temperatures. </li> <li> Metal gears form a solid framework for precise control and operation. </li> <li> Supports digital and analog control signals </li> <li> Ideal for rudder on 450 level helis, CCPM on 500 level helis, and steering servo on 1/12th scale cars. </li> </ui>

<h3>Specifications</h3> <ul> <li>Torque(4.8V): 3.8 kg-cm ( 52.8 oz/in)<br> </li> <li>Torque(6.0V): 6.0 kg-cm ( 83.3 oz/in)<br> </li> <li>Torque(7.4V): 8.0 kg-cm ( 111.1 oz/in)<br> </li> <li>Torque(8.4V): 8.8 kg-cm ( 122.2 oz/in)<br> </li> <li>Speed: 0.11 sec (4.8V) │ 0.09 sec (6.0V)<br> </li> <li>Speed: 0.07 sec (7.4V) │ 0.06 sec (8.4V)<br> </li> <li>Operating Voltage：4.8 ~ 8.4 DC Volts<br> </li> <li>Max Current：7.4V 2.0A<br> </li> <li>Gear Type：Titanium &amp; Steel<br> </li> <li>Spline：25T<br> </li> <li>Weight: 35.0 g (1.23 oz)<br> </li> <li>Size：29.5 x 14.0 x 31.4 mm ( 1.16 x 0.55 x 1.24 in)<br> </li> <li>Markings are provided for two painting schemes</li> </ul>

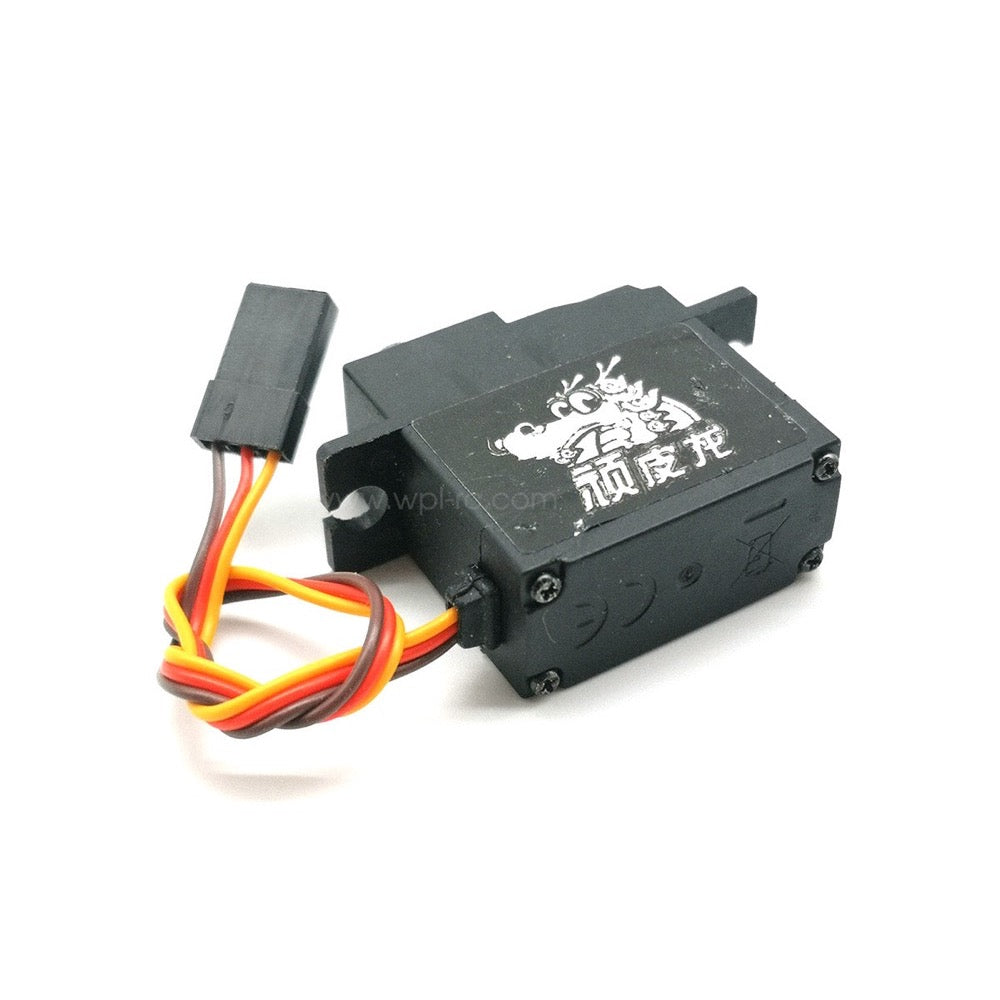

<h3>Features</h3> <ul> <li>17gram Servo</li> <li>Signal: Digital</li> <li>Gears - Metal</li> <li>Compatible with all current models of B &amp; C series and D12 D42, except C34 and C44.</li> <li>For Steering</li> </ul> <h3>Specification</h3> <ul> <li>Dead band: 2μs</li> <li>Working frequence: 1520μs / 300hz</li> <li>Motor: core motor</li> <li>Operating Voltage: DC4.8-6.0 V Operating Speed (4.8V): 0.13sec/60° Operating Speed (6V): 0.11 sec/60° Stall Torque (4.8V): 3.0kg.cm</li> <li>Stall Torque (6V): 3.5 kg.cm</li> <li>Dimensions:28x13x29.7cm</li> <li>Weight: 17.5 g</li> <li>Connector Wire Length: JR 180 mm Output Shaft: 46T</li> </ul>
