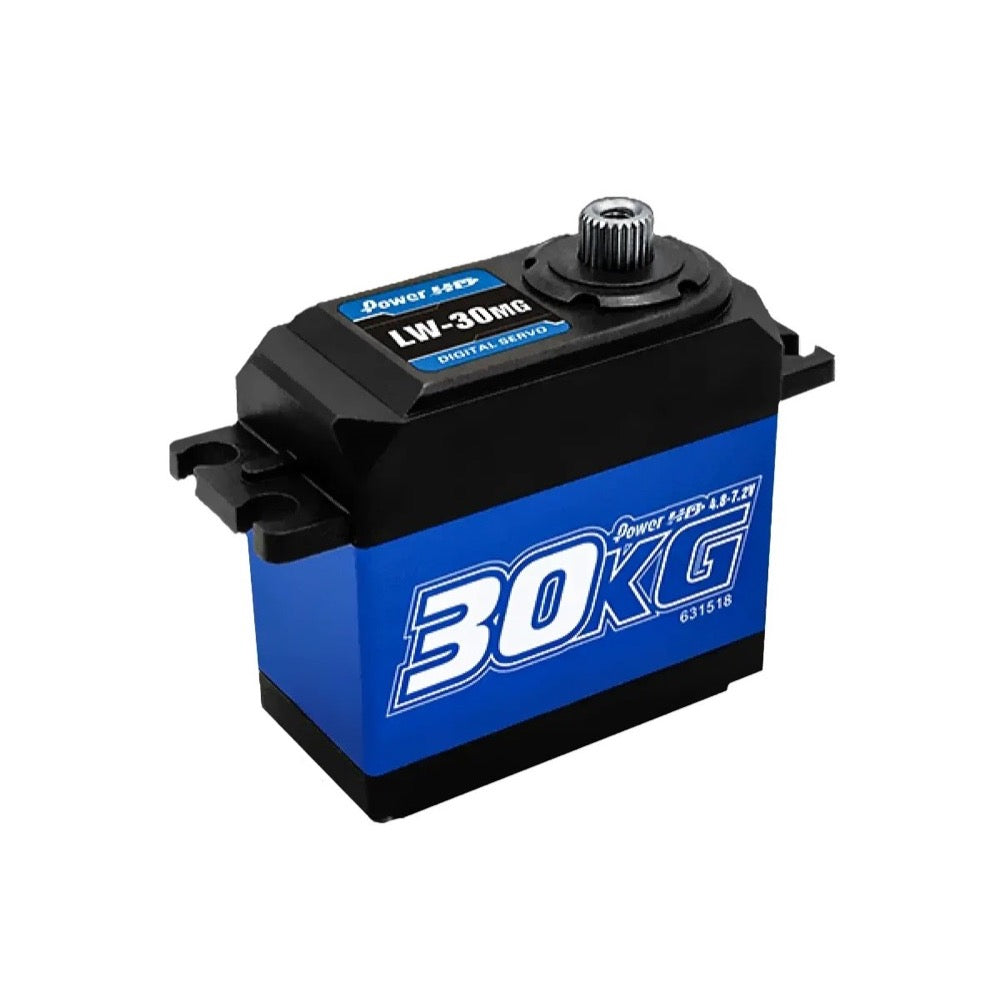

<p>Coming from Power HD is the new design waterproof HV servo LW-30MG. 30kg/cm, with stable performance, high torque, stronger locking force double, less gear slop, double ball bearings, and 25T metal spline, it is ideal for RC crawler,boat, aircraft, etc.</p> <h3>Features</h3> <ul> <li>Full CNC Machined Aluminium body<br> </li> <li>Power HD Waterproof design<br> </li> <li>compatible with 4.8-7.2v voltage<br> </li> <li>Anodised in Blue<br> </li> <li>Genuine Power HD product</li> </ul> <h3>Specifications</h3> <ul> <li>Torque(4.8V): 18.0 kg-cm (250.0 oz/in)<br> </li> <li>Torque(6.0V): 23.5 kg-cm (326.4 oz/in)<br> </li> <li>Torque(7.2V): 30.0 kg-cm (416.6 oz/in)<br> </li> <li>Speed: 0.18 sec (4.8V) ? 0.16 sec (6.0V)? 0.14 sec (7.2V)<br> </li> <li>Operating Voltage?4.8 ~ 7.2 DC Volts<br> </li> <li>Weight: 62g (2.19 oz)<br> </li> <li>Bearing Type?Ball Bearing x 2<br> </li> <li>Motor Type?DC Motor<br> </li> <li>Gear Type?Copper &amp; Aluminium<br> </li> <li>Operating Temperature?-20?~60?<br> </li> <li>Working frequency?1520?s / 333hz<br> </li> <li>Size?40.5 x 20.5 x 39.3 mm ( 1.59 x 0.81 x 1.55")</li> </ul>

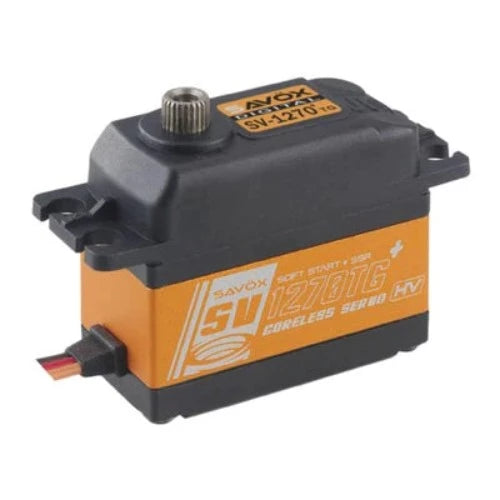

<p>The Savox SV-1270TG Plus Digital High Voltage "Monster Torque" Titanium Gear Servo is built to handle extreme requirements, with a great combination of speed and high torque. It's a fantastic choice for 1/8 applications.</p> <p>"Plus" series servos feature Soft Start and Sanwa SSR compatibility.</p> <h3>Features</h3> <ul> <li> <p>Super strong, precision made titanium gears provide durability that will survive heavy use.</p> </li> <li> <p>Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications</p> </li> <li> <p>The servo that racers desire.</p> </li> </ul> <h3>Specifications</h3> <ul> <li> <p>Torque @ 7.4v - 40.0kg/555.5oz-in</p> </li> <li> <p>Torque @ 8.4v - 45.0kg/624.9oz-in</p> </li> <li> <p>Speed @ 7.4v - 0.11 sec/60 deg</p> </li> <li> <p>Speed @ 8.4v - 0.10 sec/60 deg</p> </li> </ul> <h3>Technical Details</h3> <ul> <li> <p>Operating Temperature: 14° - 122°F (-10° - 50°C)</p> </li> <li> <p>Running Current (no load): 120mA @6.0V, 150mA @7.4V</p> </li> <li> <p>Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V</p> </li> <li> <p>Idle Current: 5mA @4.8V, 5mA @6.0V</p> </li> <li> <p>Wire Length: 200 ± 5mm</p> </li> <li> <p>Output Gear Spline: 25 Tooth</p> </li> <li> <p>Bearings: 2BB</p> </li> <li> <p>Operating Travel: 100° (1000 → 2000 µ second)</p> </li> <li> <p>Neutral Position: 1500 µ second</p> </li> <li> <p>Pulse Width Range: 800 → 2200 µ second</p> </li> <li> <p>Maximum Travel: Appx 130° (900 → 2100 µ second)</p> </li> <li> <p>Refresh Rate: 333 Hz</p> </li> <li> <p>Motor Type: Coreless</p> </li> </ul> <h3>Spare Parts</h3> <ul> <li> <p>SGSV1270TG - Servo Gear Set with Bearings, for SV1270TG</p> </li> <li> <p>CSV1270TG - Top &amp; Bottom Servo Case with Screws, for SV1270TG</p> </li> </ul>

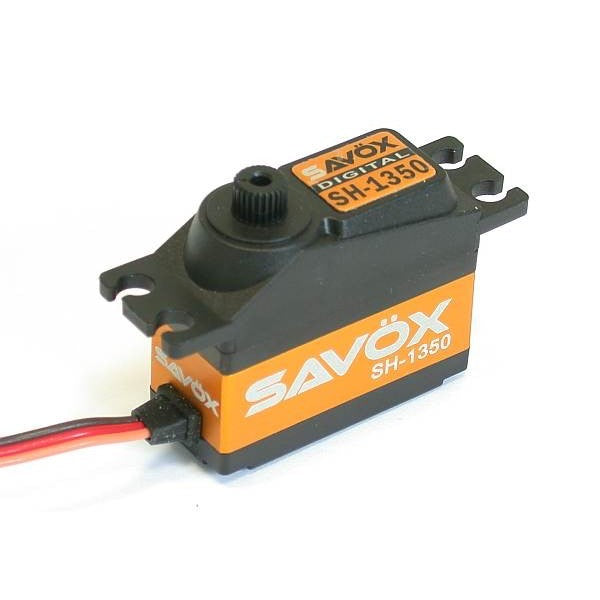

<p>This is the Savox SH-1350 Super Torque Mini Digital Servo. </p> <h3>Features </h3> <ui> <li>The coreless motor has brought above average performance and ensures smoother, faster, and more efficient operation. </li> <li>The metal case design not only looks awesome but also allows for cooler and smoother operating temps.</li> <li>Ideal as a rudder servo on 450 class helis, CCPM servo on 500 class helis, and steering servo on 1/12th scale cars.</li> </ui>

<p>This is the Savox SC-0255MG Micro Metal Gear Digital Servo. </p> <h3>Features </h3> <ui> <li>Over-spec refined design out performs ordinary micro size servo.</li> <li>The aluminum case design looks awesome and allows for cooler operating temperatures.</li> <li>Precision metal gears form a strong and solid framework.</li> <li>Strict production and quality control of plastic components ensures long life and reliability.</li> <li>Our servos are totally green – from materials to production, these servos are  environmentally friendly.</li> <li>Ideal for CCPM applications in 450 size heli's and park flier planes.</li> </ui>

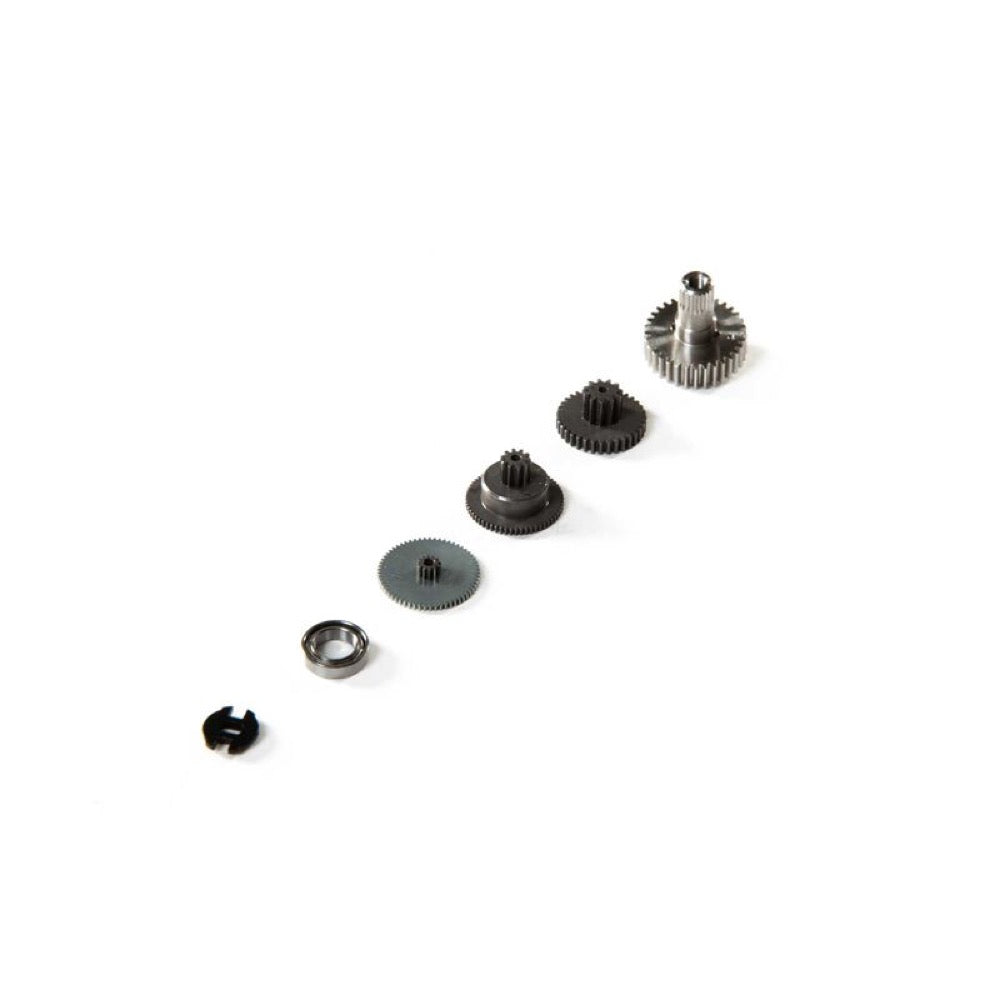

<p>Gear Set A6310</p> <h3>Specifications</h3> <ul> <li>Part Type: Gears</li> </ul>

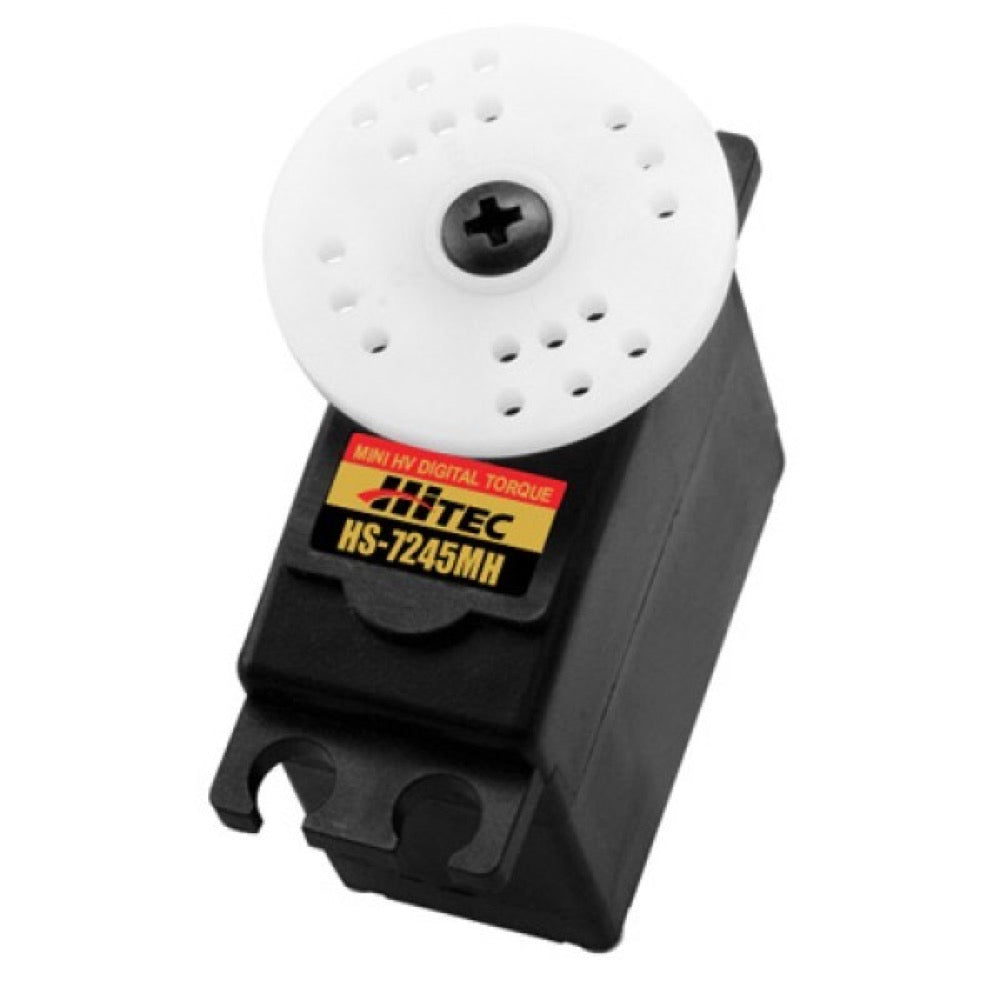

<p>Hitec HS-7245MH High Voltage Digital Mighty Mini Servo. Coreless Motor.G2 C - (HTHS-7245MH)</p> <h3>Specs</h3> <ul> <li>Application: .40 to .60-sized glow and electric planes; 500-550 electric helis; 1/12 scale on-road and 1/18 scale rock crawlers</li> <li>Torque: 72 oz-in (5.2 kg-cm) @ 6.0V; 89 oz-in (6.4 kg-cm) @ 7.4V</li> <li>Speed: 0.13 sec/60° @ 6.0V; 0.11 sec/60° @ 7.4V</li> <li>Length: 1.28 in (32.4mm)</li> <li>Width: 0.66 in (16.8mm)</li> <li>Height: 1.29 in (32.8mm)</li> <li>Weight: 1.20 oz (34.0 g)</li> <li>Bushing Or Bearing: Bearing</li> <li>Bearing: Dual</li> <li>Motor Type: Coreless</li> <li>Connector Type: Universal</li> <li>Gear Type: Metal</li> <li>Voltage: 6.0V-7.4V</li> </ul>

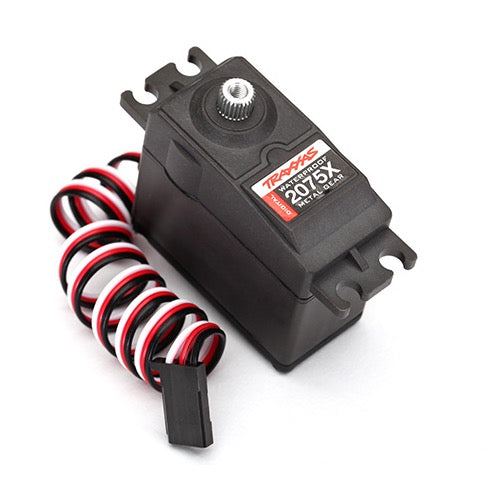

<p>This Servo is a standard size metal gear servo that can be used as a replacement on vehicles requiring at least 7kg-cm (97oz-in) of torque with a 25T output spline.</p> <h3>Specification</h3> <ul> <li>Product Height: 1.55" (39 mm)</li> <li>Product Length: 1.58" (40 mm)</li> <li>Product Weight: 0.13 lb</li> <li>Product Width: 0.79" (20 mm)</li> <li>Servo Operating Voltage: 6.0 - 7.4V (HV)</li> <li>Servo Type: Digital</li> <li>Spline Count: 25 - Tooth</li> <li>Torque: 88 oz/in (6.37 kg/cm) @ 6.0V, 103 oz/in (7.42 kg/cm) @ 7.2V</li> </ul>

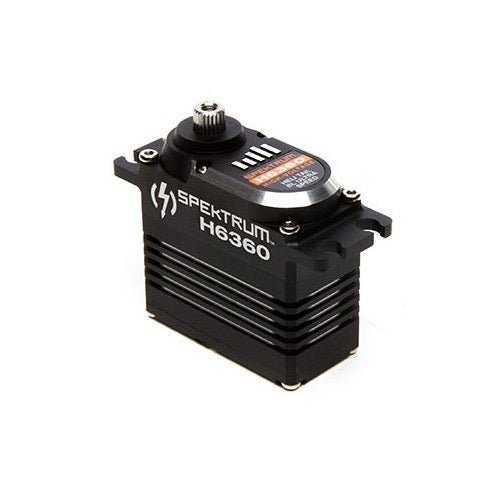

<p>Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, blindingly fast performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.</p> <p>The Spektrum H6360 tail servo uses this solid foundation, to achieve blinding transit speeds of .04 sec with an outstanding balance of durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding tail-rotor control choice for of 550- to 700-class electric and nitro helis.</p>

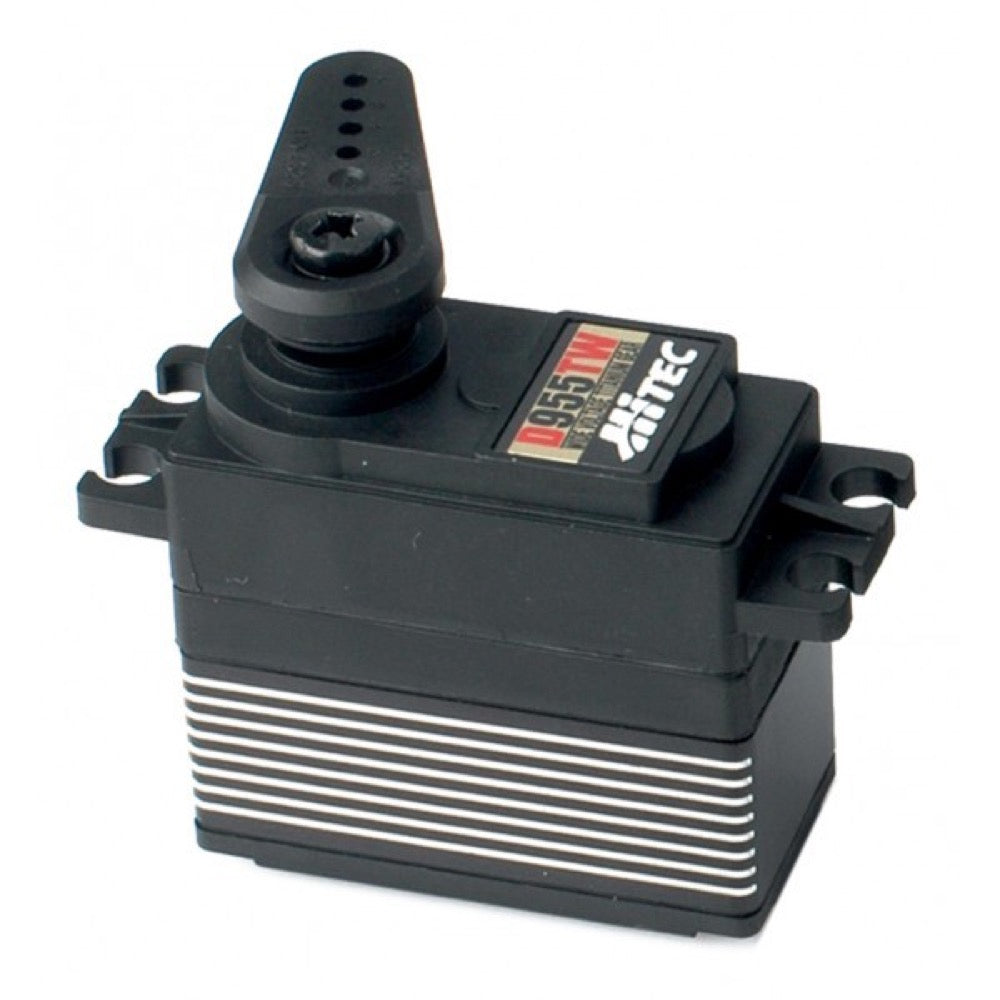

<p>HITEC HS-D955TW Ultra Response, Wide Voltage, Ultra Torque, Splash Proof, Servo with Titanium Alloy gears.</p> <h3>Applications</h3> <ul> <li>Aircraft 20~120 Class</li> <li>All EP 600~700 &amp; GP 30~90 Class Helicopters</li> <li>1/10~1/4 Scale Car Steering &amp; Throttle</li> <li>Nitro &amp; Gasoline Boats</li> <li>32bit MCU/12bit ADC</li> </ul> <p>Hitec's new 32bit ADC allow the best ever response in the hobby industry. You can also udtilize Hitec's PC interface to customize your D-series servos for maximum performance (EPA, Resolution set, Fail safe, Soft Start), in a multitude of applications.</p> <h3>Wide Voltage</h3> <p>Hitec's First Wide Voltage capability supports all types of receiver batteries, from 4.8 to 7.4 volts.</p> <h3>Features</h3> <ul> <li>Operation Voltage: DC 3.5~8.4V</li> <li>Wide Voltage, Ultra Torque Digital Servo</li> <li>Programmable Digital Amplifier with MOSFET Drive</li> <li>Durable Titanium Alloy Gears with Dual Ball Bearing</li> <li>Ultra Hardness Gear Shaft with 3 Axial Metal Bushing</li> <li>Heat Sink for Motor</li> <li>Water &amp; Dust Resistance (Splash Proof)</li> <li>H25T 25 tooth spline horn Gear</li> <li>3mm Horn Screw (' ' &amp; HEX Socket Screw Included)</li> </ul> <h3>Specs</h3> <ul> <li>4.8V Torque: 18.0kg.cm</li> <li>4.8V Speed: 0.19 sec/60º</li> <li>6.0V Torque: 24.0kg.cm</li> <li>6.0V Speed: 0.15sec/60º</li> <li>7.4V Torque: 29.0kg.cm</li> <li>7.4V Speed: 0.12sec/60º</li> <li>Dimensions: 40 x 20 x 37 mm</li> <li>Weight: 66g</li> </ul>
