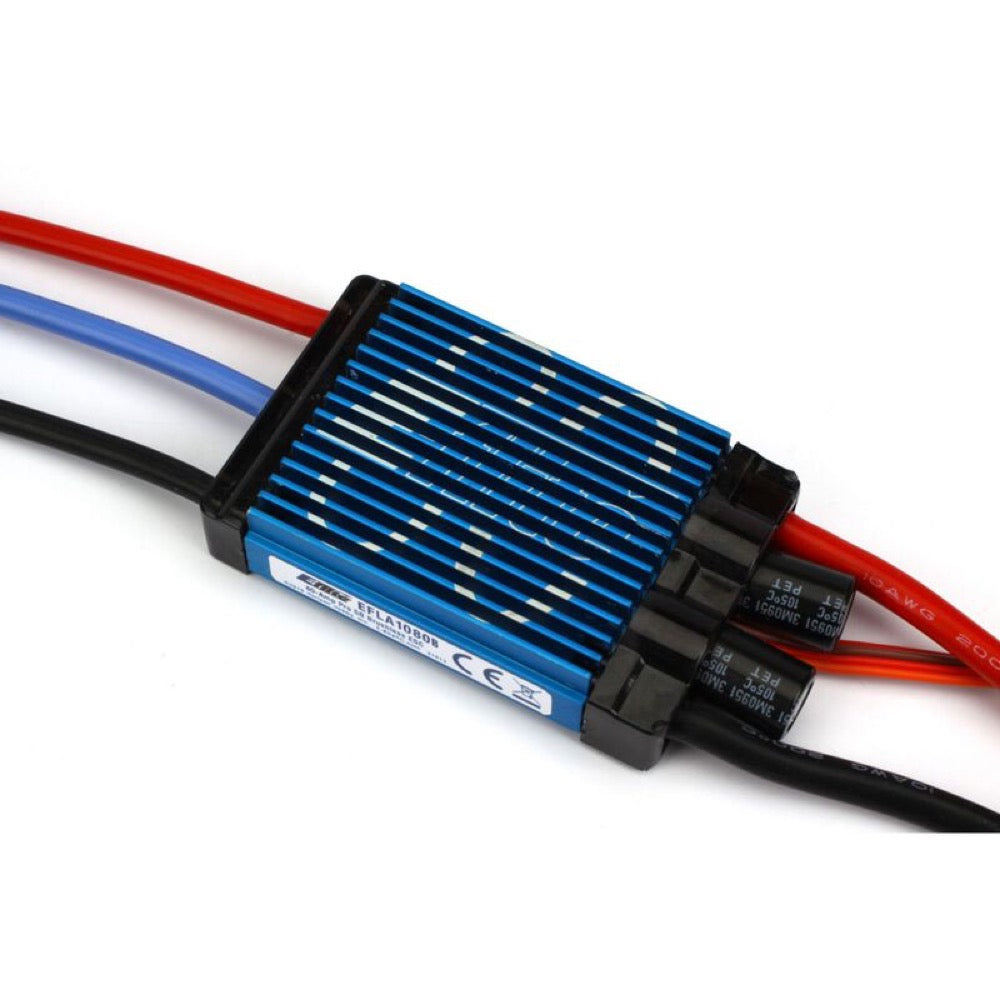

<p>When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.</p> <p>This product is not intended for use by children under 14 years of age without direct adult supervision.</p> <h3>Features</h3> <ul> <li>Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)</li> <li>5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage</li> <li>Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage</li> <li>3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage</li> <li>Programmable motor braking</li> <li>Safe power-arm mode prevents accidental starts</li> <li>Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage</li> <li>Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)</li> <li>Programmable soft start-up rate - .25 second or 1 second</li> <li>Auto motor shut down if signal is lost or there is interference</li> <li>Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors</li> <li>Two operating modes–Airplane or Heli</li> <li>Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female</li> <li>gold bullets on motor output leads</li> <li>NOTE: Not recommended to use with E-flite Power 60 Brushless Outrunner (EFLM4060B)</li> </ul> <h3>Specs</h3> <ul> <li>Amperage: 60 &amp; Up</li> <li>Auto Cutoff: Yes</li> <li>BEC Continous Current: 5A</li> <li>BEC Voltage: 5.5V Switch-mode</li> <li>Brakes: Yes</li> <li>Connector Type: EC5</li> <li>Forward: Yes</li> <li>Maximum Burst Current: 100A</li> <li>Output Connector: 4mm BulletOverload Protection: Yes</li> <li>Part Type: Electronics</li> <li>Programmable: Yes</li> <li>Time Delay Brake: Yes</li> </ul>

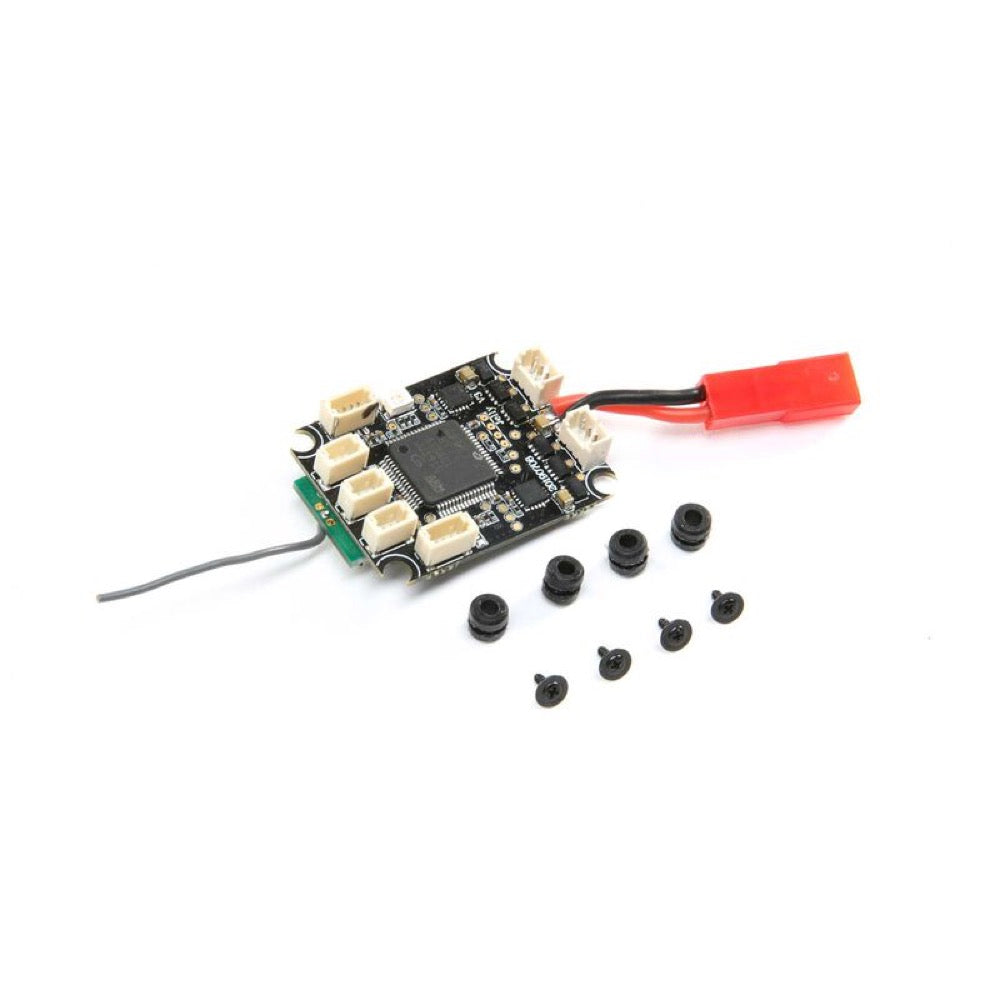

<p>Receiver / ESC Unit with AS3X &amp; SAFE: UMX Ultrix</p> <h3>Specification</h3> <ul> <li>Part Type: Airframe Parts</li> </ul>

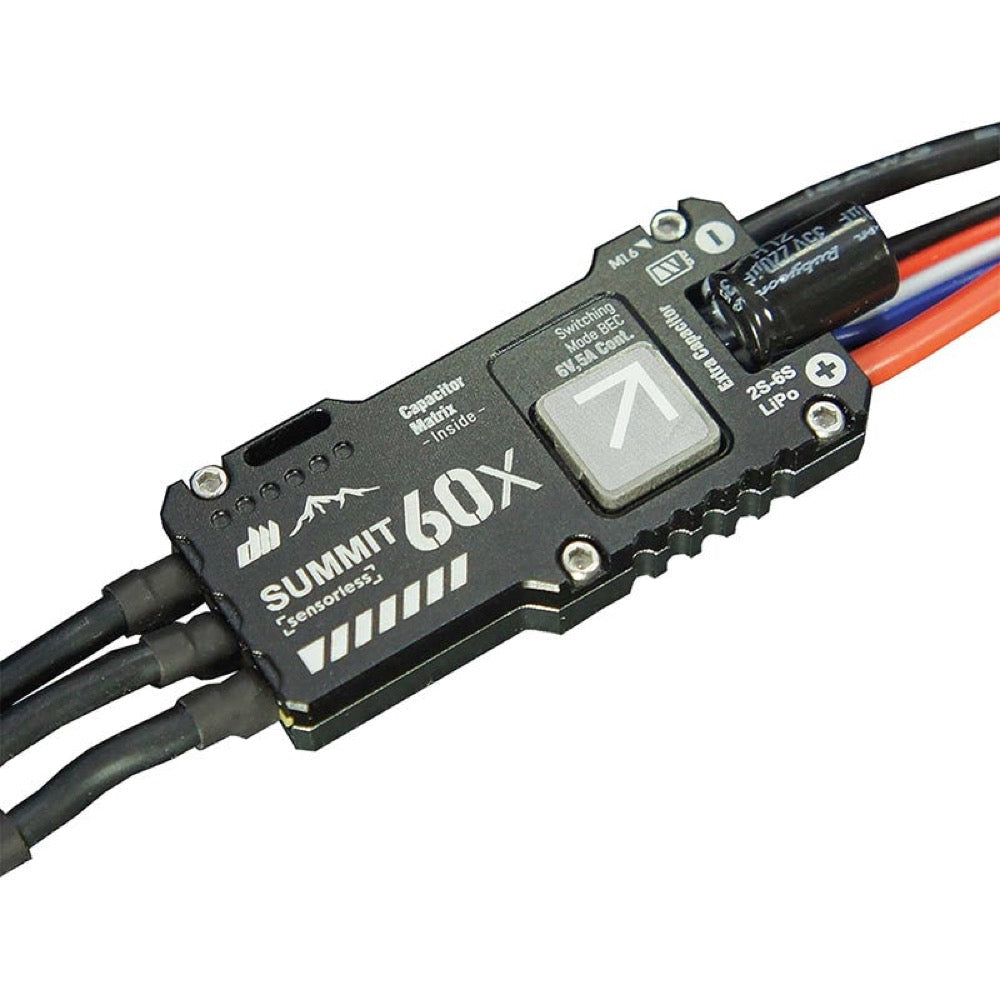

<p>Dualsky Summit 60X-U6 60A Slim 6S Brushless ESC is designed for superior functionality and performance, primarily in multi-rotors and runs on ARM 32bit MCUs.</p> <h3>Features</h3> <ul> <li>Telemetry support including temperature, voltage, current and rotation speed</li> <li>Temperature protection</li> <li>Low RPM power protection</li> <li>Low Voltage protection</li> <li>Current protection</li> <li>PWM frequency</li> <li>Minimum throttle, maximum throttle and centre throttle</li> <li>S.BUS as input signal is supported</li> </ul> <h3>Specification</h3> <ul> <li>Cells: 2-6 LiPo</li> <li>Duration current (A): 60</li> <li>Weight (g): 40.6 g</li> <li>BEC: 6V/5A (10A kurz)</li> <li>Length (mm): 49 mm</li> <li>Type: Brushless</li> <li>Wide (mm): 23 mm</li> <li>Height (mm): 7.2mm</li> <li>BEC or OPTO: BEC</li> <li>Direction of rotation: Normal</li> <li>Motor timing: Auto</li> <li>Throttle stick min. 1040</li> <li>Throttle stick max. 1960</li> <li>Undervoltage shutdown: 3V</li> <li>Brake on stop: 80%, activated</li> <li>PWM frequency: 24kHz</li> </ul>

<p>MJX Hyper Go H16DR RC Car Parts RE353 ESC Board with The maximum 35A current limit.</p> <p>It can be also used for the Hyper Go H16DR,16207,16208 RC Truck</p>

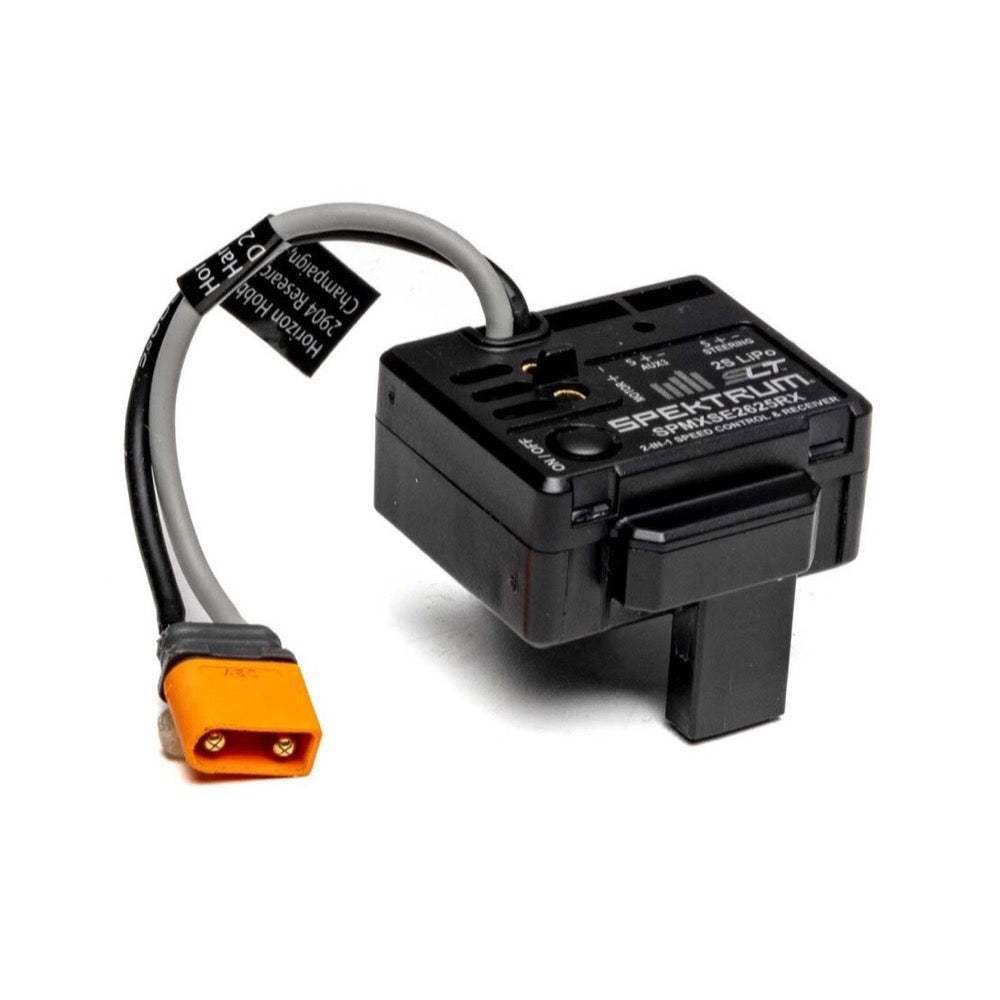

25A GROM SLT 2n1 ESC RX
